Have you ever wondered why your bathroom sometimes smells like sewage, or why your kitchen sink drains more slowly than molasses? The culprit might be hiding in plain sight – or somewhat, behind your walls. The maximum house distance from the trap to the vent plays a crucial role in keeping your home’s plumbing system running smoothly and odor-free.
Picture this: beneath every sink, toilet, and drain in your home lies an intricate network of pipes working tirelessly to keep your living space clean and comfortable. At the heart of this system are two unsung heroes – plumbing traps and vents. These components work together like a well-choreographed dance, but when they’re too far apart, the performance falls flat.
Understanding the proper distance between these essential plumbing elements isn’t just for professional plumbers. As a homeowner, knowing these basics can save you from costly repairs, failed inspections, and those mysterious gurgling sounds that go bump in the night.
Understanding the Basics: What Are Plumbing Traps and Vents?
Before diving into distances and measurements, let’s break down what these plumbing components actually do. Think of your home’s plumbing system as a complex highway system – traps and vents are the traffic controllers that keep everything flowing smoothly.
The Plumbing Trap: Your First Line of Defense
A plumbing trap, commonly known as a P-trap due to its distinctive shape, is that curved pipe you’ll find under every sink in your home. This simple yet ingenious device serves as a barrier between your living space and the sewer system below.
The trap works by holding a small amount of water in its curved section. This water creates an airtight seal that prevents sewer gases from wafting up through your drains. Without this water seal, your home would smell like, well, a sewer. Not exactly the ambiance you’re going for in your kitchen or bathroom!
Every time you use a fixture, fresh water flows through the trap, replacing the old water and maintaining that crucial seal. It’s a self-renewing system that works beautifully – as long as everything else is properly configured.
The Vent Pipe: Breathing Room for Your Plumbing
Now, imagine trying to pour water from a bottle with only one opening. It glubs and gurgles, right? That’s because air needs to enter as water exits. The same principle applies to your plumbing system, and that’s where vent pipes come into play.
Vent pipes extend from your drainage system up through your roof, allowing air to enter the pipes as water flows down. This air prevents the creation of a vacuum that could suck the water right out of your traps – a phenomenon called siphoning.

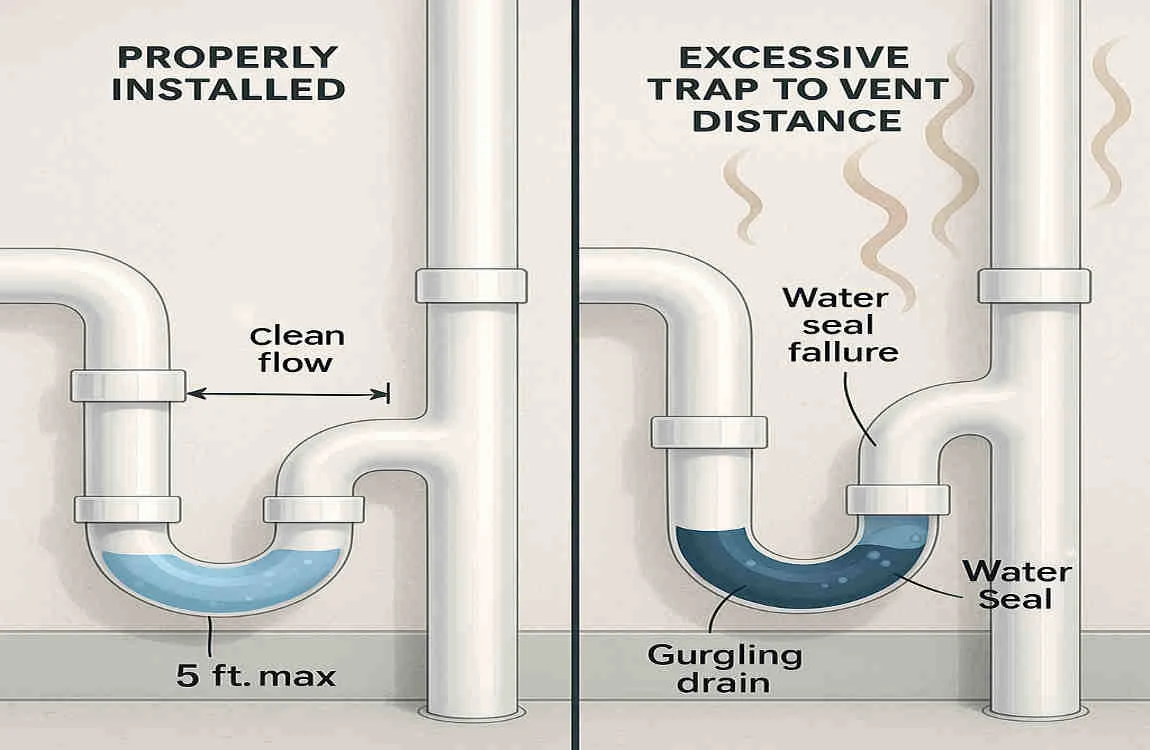

The Critical Relationship Between Trap and Vent
Here’s where things get interesting. The trap and vent must work in perfect harmony to maintain proper drainage and prevent sewer gas infiltration. When water flows down a drain, it creates negative pressure that could potentially siphon the water seal from the trap. The vent pipe relieves this pressure by allowing air to enter the system.
However, if the vent is too far from the trap, it cannot perform its function effectively. The water moving through the pipes creates enough suction to pull the trap seal dry before the vent can equalize the pressure. It’s like trying to help a friend who’s too far away – by the time you get there, it’s too late.
Why Distance Matters Between Trap and Vent
You might be thinking, “It’s just a few extra inches of pipe – what’s the big deal?” Well, those extra inches can mean the difference between a properly functioning plumbing system and a homeowner’s nightmare.
You may also read (a guide to selecting glue for home hot tub repairs).
The Siphoning Effect: When Physics Works Against You
When water rushes down a drain pipe, it creates a powerful suction force. If the vent is positioned correctly, air rushes in to fill the void, maintaining equilibrium. But stretch that distance too far, and you’ve got a problem.
Excessive distance between the trap and the vent allows the rushing water to build up enough momentum to overcome the trap’s water seal. This siphoning effect literally sucks the protective water barrier right out of the trap, leaving an open pathway for sewer gases to enter your home.
Real-World Impact on Your Daily Life
The consequences of improper trap-to-vent distance affect your daily routine in several ways:
Slow drainage becomes a constant annoyance. Without proper venting, water struggles to flow freely, leading to standing water in sinks and tubs. You’ll find yourself waiting impatiently as the sink slowly empties after washing dishes.
Mysterious odors start appearing, especially after heavy water usage. That distinctive sewer smell isn’t just unpleasant – it can contain harmful gases like methane and Hydrogen sulfide.
Gurgling sounds echo through your pipes as air desperately tries to find a way into the system. These sounds aren’t just annoying; they’re your plumbing system crying for help.
Frequent clogs become the norm as the improper venting creates areas where debris accumulates instead of flowing freely through the system.
Code Compliance: More Than Just Red Tape
Building codes exist for good reasons, and plumbing codes are no exception. They’re based on decades of experience and countless plumbing disasters. Adhering to proper trap-to-vent distances isn’t just about avoiding fines or passing inspections – it’s about ensuring your home’s plumbing system functions safely and efficiently for years to come.

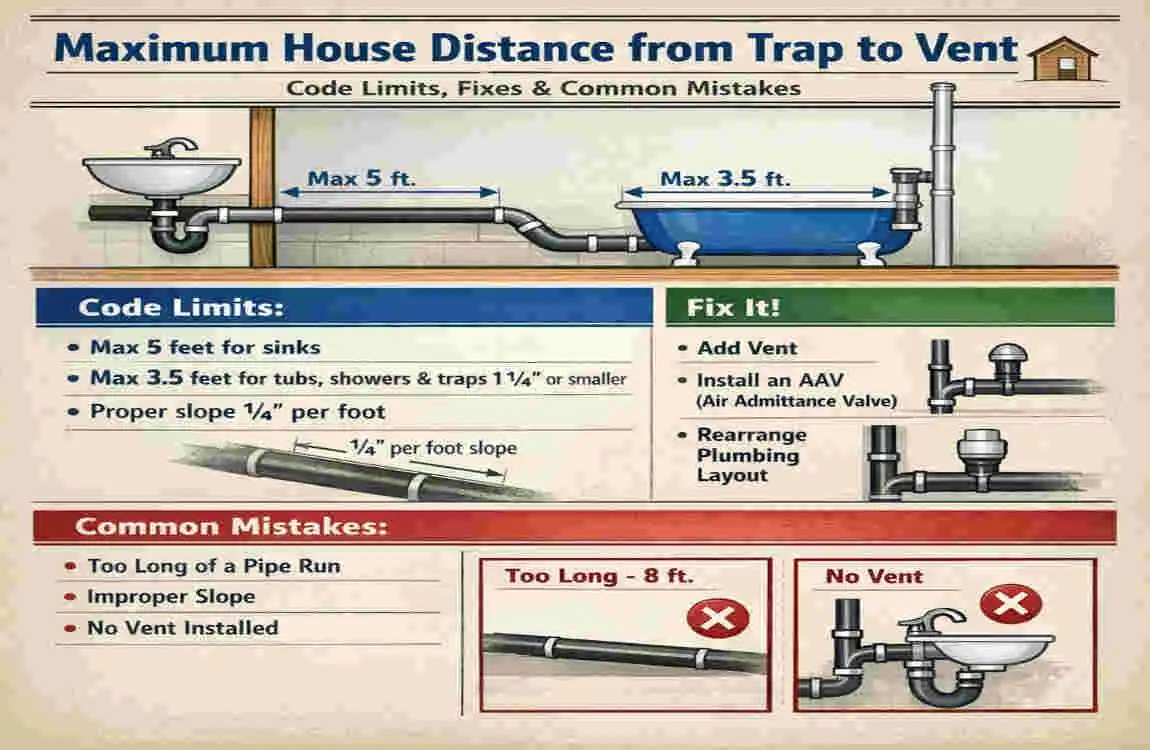

Maximum Distance from Trap to Vent: What Do Plumbing Codes Say?
Now we’re getting to the meat and potatoes – the actual numbers that govern the maximum house distance from trap to vent. These measurements aren’t arbitrary; they’re carefully calculated based on pipe physics and real-world testing.
The Golden Rules by Pipe Diameter
Different pipe sizes can handle different distances before siphoning becomes a problem. Here’s what most plumbing codes stipulate:
Pipe Diameter Maximum Distance Common Applications
1¼ inches 30 inches (2.5 feet) Bathroom sinks, bar sinks
1½ inches 42-54 inches (3.5-4.5 feet) Kitchen sinks, laundry tubs
2 inches , 60 inches (5 feet) Shower drains, washing machines
3 inches 72 inches (6 feet) Floor drains, toilet connections
4 inches 120 inches (10 feet) Main building drains
These measurements come from authoritative sources like the American Legal Publishing Table 909.1 and are widely adopted across most jurisdictions. However, always check your local codes, as some areas have stricter requirements.
The Slope Factor: It’s All About the Angle
Distance isn’t the only consideration. The slope of the trap arm (the horizontal pipe between the trap and vent) plays a crucial role. Most codes require a slope of ¼ inch per foot – enough to ensure water flows freely but not so steep that it creates excessive velocity.
Too much slope can be just as problematic as too little. A steep angle increases water velocity, which strengthens the siphoning effect. It’s a delicate balance that requires careful planning and installation.
Special Cases and Exceptions
Not all fixtures play by the same rules. Water closets (toilets) are a notable exception. They have self-siphoning traps built into their design, so the venting requirements differ. Toilets typically need venting within 6 feet, regardless of the waste pipe size.
Some jurisdictions also allow for alternative venting methods like wet venting or circuit venting in specific situations. These methods can effectively extend the allowable distances but come with their own sets of rules and restrictions.
Understanding the Measurements
When measuring trap-to-vent distance, you’re measuring the developed length – the actual distance water travels through the pipe, including any turns or fittings. A straight line might be 3 feet, but add a couple of 90-degree elbows, and your developed length could exceed 4 feet.

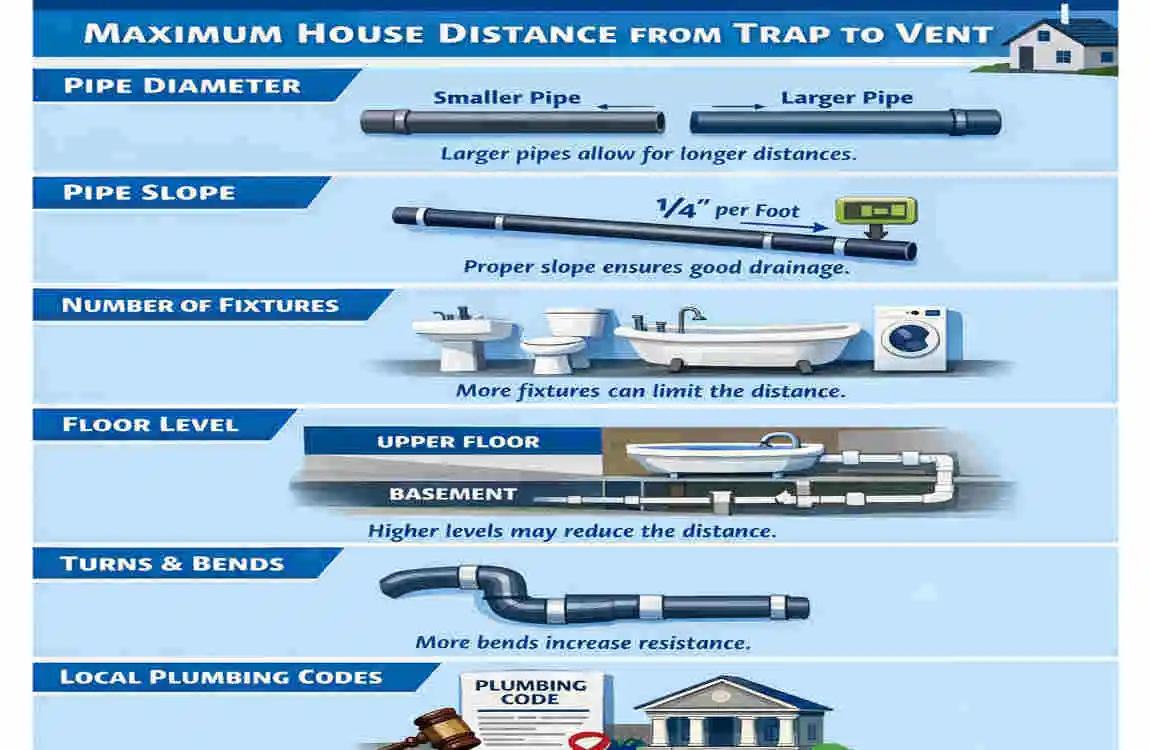

Factors Influencing the Maximum Distance
While pipe diameter sets the baseline for maximum trap-to-vent distance, several other factors come into play. Understanding these variables helps you make informed decisions about your plumbing layout.
Pipe Diameter: The Primary Factor
As we’ve seen, pipe diameter is the most critical factor determining allowable distance. Larger pipes can handle longer distances because they have more volume to resist siphoning. The physics is simple: more water in a larger pipe creates more resistance to being sucked out.
But don’t think bigger is always better. Oversized pipes can lead to other problems, like inadequate water velocity for proper waste removal. It’s about finding the right size for your specific application.
The Slope Sweet Spot
You may also read (moving house bathroom sink plumbing made simple).
Getting the grade right is crucial. That standard ¼ inch per foot isn’t just a suggestion – it’s a carefully calibrated requirement. Too little slope, and water pools in the pipe, creating breeding grounds for bacteria and eventual clogs. Too much slope, and you risk siphoning problems.
Professional plumbers use levels designed explicitly for checking pipe slope. For DIY enthusiasts, a standard level with slope indicators can work, but accuracy is paramount.
Fitting Limitations
Every fitting in your trap arm affects the maximum allowable distance. Codes typically limit the cumulative angle changes to 135 degrees. Why? Because each turn creates turbulence and resistance that can contribute to siphoning.
A straight run from trap to vent is ideal, but real-world installations rarely allow for such simplicity. When planning your plumbing, minimize turns and use sweep elbows instead of sharp 90-degree fittings when possible.
Fixture-Specific Considerations
Different fixtures have different flow rates and usage patterns, affecting venting requirements:
Kitchen sinks often deal with grease and food particles, requiring robust venting to prevent clogs and maintain proper flow.
Bathroom sinks typically have lower flow rates but might have hair and soap scum issues that affect drainage.
Laundry fixtures must handle large volumes of water released quickly, making proper venting especially critical.
Floor drains might see infrequent use, making trap seal retention a primary concern.
Local Code Variations
While national codes provide guidelines, local jurisdictions often have their own requirements based on regional factors. Areas with extreme temperatures, high water tables, or unique geological conditions might have stricter requirements.
Some regions require shorter maximum distances in multi-story buildings due to stack effects. Others might allow longer distances for specific fixture types based on local experience.
Practical Examples of Trap to Vent Distances in Typical Homes
Let’s move from theory to practice with real-world examples you might encounter in your own home. These scenarios illustrate how trap-to-vent distances work in everyday situations.
The Kitchen Sink Dilemma
Sarah’s renovating her kitchen and wants to move the sink to a kitchen island. Her plumber explains that with a 1½ inch trap, the vent must be within 42 inches of the trap weir.
The original plan places the vent connection 48 inches away – just 6 inches over the limit, but enough to cause problems. The solution? Either move the island slightly closer to the wall where the vent stack runs, or install an island vent that comes up through the cabinet.
This example shows how even small distance overruns can necessitate significant design changes. Planning ahead saves time, money, and frustration.
The Basement Bathroom Addition
Tom’s adding a bathroom in his basement. The bathroom sink will have a 1¼ inch trap, limiting the vent distance to 30 inches. The nearest vent stack is 5 feet away – way over the limit.
Instead of running new vent pipes through finished walls upstairs, Tom’s plumber suggests using a larger 1½ inch trap and drain line. This increases the allowable distance to 42-54 inches, still not enough. The final solution involves installing a new vent that ties into the existing system in the ceiling.
This scenario demonstrates how pipe sizing decisions affect overall plumbing design and cost.
The Laundry Room Relocation
The Johnsons want to move their laundry from the basement to the second floor. The washing machine requires a 2-inch drain line, allowing up to 5 feet to the vent.
The planned location puts the standpipe 4 feet from the nearest vent – within limits! However, the plumber notices the route includes two 90-degree turns. With the developed length calculation, the actual distance exceeds 5 feet.
The solution involves using 45-degree fittings instead of 90-degree elbows, reducing the developed length to acceptable limits. This example highlights the importance of considering the entire pipe run, not just straight-line distance.
Common Mistakes to Avoid
Through these examples, several common mistakes emerge:
Measuring straight-line distance instead of developed length leads to undersized installations.
Ignoring local codes can result in failed inspections, even if you follow national standards.
Choosing convenience over code compliance might save time initially, but it causes problems down the road.
Assuming all fixtures have the exact requirements leads to one-size-fits-all solutions that don’t work.
Consequences of Ignoring Maximum Trap to Vent Distance
What happens when you push the limits or ignore these distance requirements altogether? The consequences range from minor annoyances to significant health hazards and expensive repairs.
The Dreaded Sewer Gas Invasion
The most immediate and noticeable consequence is sewer gas infiltration. When trap seals are compromised, these gases have a direct path into your living space. We’re not just talking about bad smells here – though that rotten egg odor is certainly unpleasant enough.
Sewer gases contain methane, which is flammable in high concentrations. They also include Hydrogen sulfide, which can cause eye irritation, headaches, and respiratory issues. In extreme cases, these gases can be toxic.
The smell often comes and goes, making it hard to pinpoint the source. You might notice it more after flushing toilets or running the washing machine – activities that create strong suction in the drain system.
Chronic Drainage Problems
Improper venting creates a cascade of drainage issues. Slow draining becomes the norm rather than the exception. You’ll find yourself plunging sinks and tubs regularly, wondering why they keep backing up.
Water might even back up into other fixtures. Run the washing machine, and the nearby floor drain gurgles. Flush the upstairs toilet, and the basement shower drain bubbles. These cross-connections indicate serious venting problems that won’t resolve themselves.
Code Violations and Failed Inspections
If you’re selling your home or pulling permits for renovations, code violations related to trap-to-vent distances can stop everything in its tracks. Home inspectors are trained to spot these issues, and they will flag them.
Fixing these violations after the fact is always more expensive than doing it right the first time. You might need to:
- Open finished walls to access pipes
- Reroute entire sections of plumbing
- Add new vent stacks through the roof
- Repair and refinish damaged areas
The Hidden Costs of Non-Compliance
Beyond the obvious repair costs, improper trap-to-vent distances create ongoing expenses:
Increased water usage from slow drains that require multiple flushes or extended running times.
Frequent drain cleaning services treat symptoms without addressing the root cause.
Potential health costs from exposure to sewer gases, especially for sensitive individuals like children, older people, or those with respiratory conditions.
Property damage from overflowing fixtures caused by poor drainage.
Decreased property value occurs when plumbing problems become apparent during sale negotiations.
Tips for Homeowners and Plumbers on Maintaining Proper Trap-to-Vent Distance
Whether you’re a DIY enthusiast or working with professionals, these tips will help ensure your plumbing system maintains proper trap-to-vent distances.
Planning Your Plumbing Layout
Start with a detailed plan before any pipes go in. Sketch out your proposed layout, marking trap locations, vent connections, and measuring distances carefully. Consider using plumbing design software or apps that can calculate developed lengths automatically.
Think three-dimensionally about your plumbing runs. That vent stack might be close horizontally, but it requires extensive vertical runs that add to your total distance.
Consider future modifications when planning. That bathroom addition you’re thinking about for next year? Factor it into your current plumbing decisions to avoid costly rework.
Choosing the Right Materials and Methods
Select appropriate pipe sizes based on fixture requirements and desired flexibility in placement. Sometimes spending a bit more on larger pipes gives you much more layout freedom.
Use proper fittings that minimize turbulence and resistance. Long-sweep elbows cost more than standard elbows but can make the difference between code compliance and violation.
Maintain a consistent slope throughout the trap arm. Use a level frequently during installation, and don’t trust your eye – even experienced plumbers check and double-check.
When to Add Additional Vents
Sometimes the best solution is adding more venting rather than trying to squeeze within distance limitations:
Individual vents for fixtures that are far from main stacks provide the most reliable solution.
Loop vents can serve multiple fixtures while maintaining proper distances for each.
Air admittance valves (where code allows) can provide spot venting without running pipes through the roof.
Working with Professionals
Communicate your plans clearly with your plumber. If you have specific layout requirements, discuss them early in the planning process.
Ask questions about venting decisions. A good plumber will explain why confident choices are necessary and what alternatives exist.
Get multiple opinions for complex projects. Different plumbers might suggest other solutions, and understanding your options helps make informed decisions.
Insist on code compliance, even if it costs more initially. No reputable plumber should install systems that violate code, but some might take shortcuts if pressed.
How to Measure Distance from Trap to Vent Correctly
Accurate measurement is crucial for code compliance. Here’s how to measure like a professional.
Identifying Key Measurement Points
The trap weir is your starting point – it’s the highest point of the trap’s water seal. For a P-trap, this is the top of the curved section where water would overflow if the trap were overfilled.
The vent connection endpoint is where the trap arm connects to a vented section of the drainage system. This might be a wye fitting, a combo fitting, or a sanitary tee, depending on your configuration.
Calculating Developed Length
Developed length includes every inch of pipe through which the water travels. Here’s how to calculate it:
- Measure the straight sections of pipe
- Add the centerline length through each fitting
- Include vertical rises if present
- Sum all measurements for total developed length
For fittings, use these approximate additions to your measurements:
- 90-degree elbow: Add 1 foot
- 45-degree elbow: Add 6 inches
- Wye or combo fitting: Add 1.5 feet
Understanding Trap Arm vs. Waste Pipe
The trap arm is specifically the section between the trap and its vent connection. Once vented, the pipe becomes a waste pipe with different requirements.
This distinction matters because only the trap arm length counts toward your maximum distance limitation. If you connect to a properly vented waste line, measure only to that connection point, not to the main vent stack.
Common Measurement Mistakes
Forgetting fitting allowances leads to underestimating developed length. Always account for the path through fittings, not just the straight-line distance.
Measuring to the wrong point happens when people measure to a stack that isn’t actually vented at that level. Ensure you’re measuring to a genuine vent connection.
Ignoring vertical sections can throw off calculations. Any rise in the trap arm counts toward your total distance and affects performance.
Related Plumbing Concepts to Know
Understanding trap-to-vent distances is just one piece of the plumbing puzzle. These related concepts round out your knowledge.
Wet Vents: Doing Double Duty
A wet vent is a pipe that serves as both a drain for one fixture and a vent for another. This clever design can help meet venting requirements in tight spaces. For example, a bathroom sink’s drain line might wet vent a nearby toilet.
Wet venting has specific size and configuration requirements. The damp vent must be at least one pipe size larger than required for the fixture it drains, and vertical wet vents have different rules than horizontal ones.
Circuit and Common Vents
Circuit vents connect multiple traps to a single vent, which is functional in commercial applications or large residential projects. They must connect at specific points and maintain proper sizing throughout.
Standard vents serve two traps at the same level, like back-to-back bathroom sinks. These can simplify plumbing runs but require careful planning to ensure both fixtures drain properly.
The Fixture Drain Distinction
The fixture drain is the vertical pipe immediately below a fixture, before the trap. This section has its own requirements separate from trap arm considerations.
Understanding where the fixture drain ends and the trap arm begins helps in planning and ensures each section meets its specific code requirements.
Vent Sizing Considerations
Vent size affects the entire system’s performance. Undersized vents can’t provide adequate air even if they’re properly located. Vents must be at least half the diameter of the drain they serve, with specific increases for longer runs or multiple fixtures.
