Did you know that improper overlaps cause nearly 70% of metal roof leaks? It’s a staggering statistic, but according to leading roofing industry sources, the failure usually isn’t the metal itself—it’s how the pieces come together.
If you are planning a DIY project or supervising a contractor for your home, understanding how to overlap home metal roofing lengthwise is the single most critical factor in weatherproofing your investment. When we talk about lengthwise overlap, we aren’t just talking about slapping one piece of metal over another. We are talking about creating a continuous, watertight barrier that channels water from the roof ridge down to the gutters, without giving it a single chance to sneak inside.
The benefits of getting this right are massive. A correctly installed metal roof can offer longevity of 50+ years, significant energy savings through heat reflection, and incredibly low maintenance. However, if you miss the mark on the overlap, you might face water damage, mold, and costly repairs in the first few rainy seasons.
Understanding Lengthwise Overlaps in Metal Roofing
Before we start cutting metal, let’s make sure we are all on the same page regarding the terminology and the mechanics of your roof.
What Does “Lengthwise Overlap” Actually Mean?
When you look at a metal roof, you see panels running from the top (ridge) to the bottom (eaves). Sometimes, a single panel isn’t long enough to cover that entire distance. In these cases, you need two or more panels to span the length of the roof slope.
Lengthwise overlap refers to the point where the bottom of the upper panel sits on top of the top of the lower panel. This is distinct from “side laps,” which is where the panels connect horizontally. The lengthwise overlap is crucial because water runs downhill. If you don’t overlap them correctly—specifically, if the top panel doesn’t sit over the bottom one—water will run right under the sheet and into your attic.
Types of Metal Roofing Panels
The technique you use often depends on the type of metal roofing you have chosen:
- Corrugated or Exposed Fastener Panels: These are the most common for DIY projects. They have a wavy or ribbed pattern. You drive screws right through the metal panel into the wood deck. The overlap here relies heavily on sealants and proper screw placement.
- Standing Seam Panels: The Premium option with hidden fasteners. These panels often snap together. Overlapping these lengthwise requires a bit more finesse, often involving crimping tools to ensure the raised seams lock together perfectly.
Common Materials and Specs
Whether you are using Galvalume, aluminum, or galvanized steel, the physics remains the same. However, the amount of overlap you need can change based on the material’s rigidity and the slope of your roof.
Generally, for a standard residential roof, you are looking at an overlap specification of 6 to 12 inches. The lower the slope of your roof (meaning the flatter it is), the more overlap you need to prevent water from wicking backward against gravity—a phenomenon known as capillary action.
Tools and Materials You’ll Need for Success
You wouldn’t try to build a cabinet with a butter knife, and you shouldn’t try to install a metal roof without the right gear. Having the correct tools makes the job safer, faster, and much closer to professional quality.
Essential Tools Checklist
Here is what needs to be in your tool belt:
- Metal Shears or Nibblers: Do not use an abrasive blade (like a grinder) to cut your panels! It creates heat that ruins the protective coating, leaving jagged edges that rust. Use electric shears or nibblers for clean cuts.
- Caulking Gun: You will need a high-quality gun for applying your tube sealants smoothly.
- Measuring Tape: Accuracy is everything. Get a sturdy, long tape measure.
- Sealant Roller: This helps press the butyl tape firmly against the metal to ensure a watertight bond.
- Cordless Drill/Driver: You need a clutch setting to prevent over-tightening your screws.
- Chalk Line: Essential for keeping your rows straight.
The Materials
- Metal Panels: Obviously!
- Butyl Tape: This is a sticky, putty-like tape that goes between the metal sheets at the overlap. It never fully hardens, allowing the metal to expand and contract without breaking the seal.
- Screws with Neoprene Washers: These washers act as a gasket for every single hole you drill.
- Closure Strips: Foam strips shaped like your roof panels to seal the ends of your roof panels.
Pro Tip: Buy 10% Extra
When calculating your materials, always buy 10% more than you think you need. Why? Because you will be overlapping panels, which eats up square footage. Plus, mistakes happen. If you cut a panel wrong, having a spare saves you a trip back to the supplier.
Quick-Reference Tool Table
Tool/Material Purpose Why It’s Crucial
Metal Shears: Cutting panels to length. Prevents rust caused by heat from grinders.
Butyl Tape: Sealing the overlap. Provides the primary barrier against water intrusion.
Neoprene Screws Fastening panels. The rubber washer seals the screw hole to stop leaks.
The Chalk Line Alignment guide ensures your roof looks professional and panels align.
Step-by-Step Guide: How to Overlap Home Metal Roofing Lengthwise
Now, let’s get to the core of the project. I’m going to break this down into six detailed steps. If you follow this process, you will master overlapping home metal roofing lengthwise like a seasoned pro.
Prep Your Roof Deck and Measure Accurately
Before you even touch a metal panel, look at what’s underneath. Your roof deck (the plywood or OSB) needs to be solid. If there is rot, fix it now. Once the deck is clean, install a high-quality synthetic underlayment. Unlike old-school felt paper, synthetic underlayment is lighter, stronger, and provides a better secondary moisture barrier.
Now, let’s talk math. You need to carefully calculate your panel lengths.
- Measure the total length of the roof slope from the ridge to the eave.
- Add 3 to 4 inches to the eave overhang (so water drips into the gutter, not onto your fascia).
- Add your overlap allowance. If your roof requires two panels to span the slope, add 6 to 12 inches to your total required length.
Cut and Align Your First Panel
Start installation at the eaves (the bottom of the roof) on the corner furthest away from the prevailing winds. This helps keep wind from catching the seams.
Cut your bottom panel to the required length. Remember, this panel needs to overhang the eaves. Use your chalk line to snap a straight line, ensuring the panel is perfectly square with the roof edge. If you start crooked, every subsequent panel will be crooked, and by the time you reach the other side of the roof, it will look terrible.
Secure this bottom panel with screws, but leave the top 12 inches unscrewed for now. You need that top section loose so you can slide the next panel over it and apply sealant properly.
Master the Overlap Technique for Leak-Proof Seams
This is the most critical section of our guide on overlapping home metal roofing lengthwise. This is where leaks are prevented.
Clean the Surface: Take a rag and wipe down the top 12 inches of the bottom panel. Dust, pollen, or oil will prevent the sealant from sticking.
Apply the Sealant: You are going to create a “sandwich.”
- Take your butyl tape. Apply a continuous strip across the full width of the bottom panel.
- Placement matters: Place the tape about 2 inches up from the top edge of where the overlap will end.
- If you are in a high-rain area, apply two rows of butyl tape for double protection.

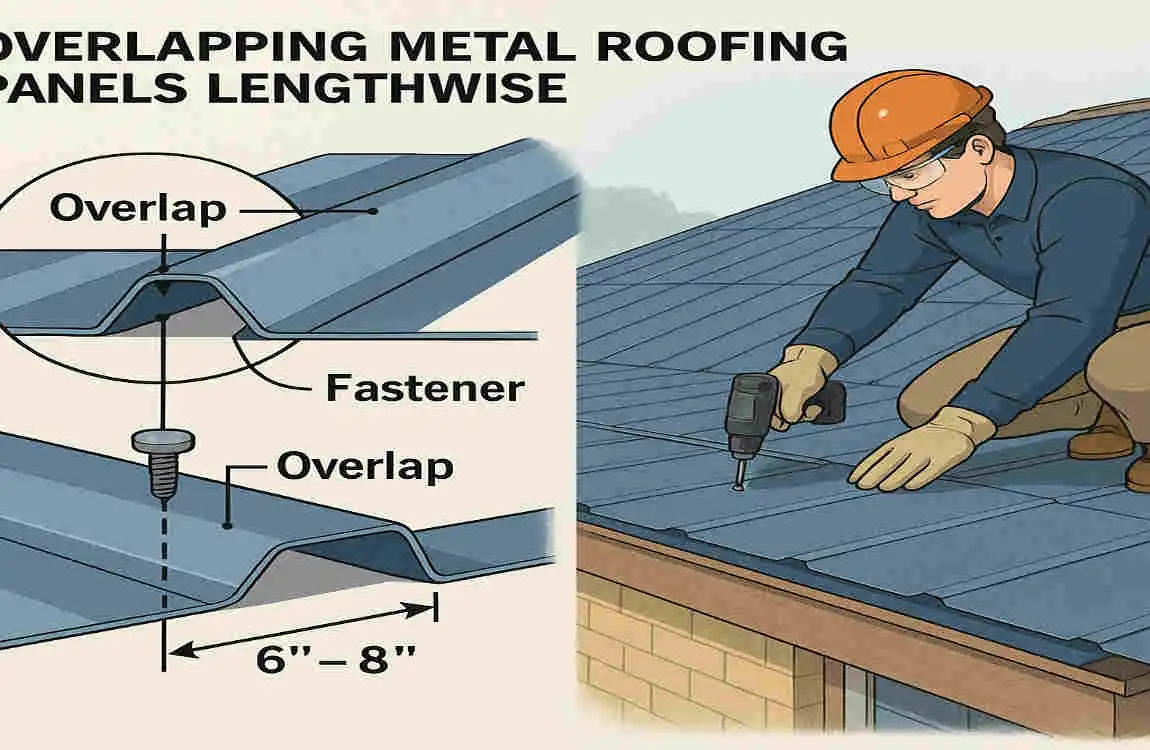

Position the Top Panel: Lift your upper panel and place it so it overlaps the bottom panel. The standard overlap is 6 inches for standard pitches (4/12 pitch and up) and 9 to 12 inches for low slopes.
- Visual Note: Imagine shingling. The top panel must go over the bottom panel so water flows over the joint, not into it.
Check the Alignment: Before you screw anything down, ensure the ribs of the top panel line up perfectly with the ribs of the bottom panel. They should nest together snugly without gaps.
Secure Panels and Flash End Laps
Now that your sealant is in the “sandwich,” it’s time to clamp it shut.
Screw Placement: Drive screws through the overlap to compress the butyl tape.
- Place screws on top of the ribs (or beside them, depending on your panel type—check instructions).
- Crucial Rule: Do not drive a screw directly through the butyl tape if you can avoid it; often, you must screw near it to get compression. The goal is to squeeze the panels together so the tape spreads and seals.
- Space your screws every 12 to 18 inches along the overlap.
Flash the Laps: If you have a very low slope roof, you might need to add a “stitch screw” between the main ribs to ensure the flat part of the panel doesn’t gap open.
Final Checks and Weatherproofing
You aren’t done until you’ve inspected your work. Once a section is installed, get up close.
- The Squeeze-Out Test: In a perfect install, you might see a tiny bit of butyl tape “squeezing out” from the edge of the lap. This is actually a good sign—it means you have excellent compression.
- Check for Gaps: Look at the overlap from the side. Can you see daylight? If so, water can get in. Add a stitch screw to close the gap.
- The Hose Test: If you want to be 100% sure, wait for a sunny day and gently run water over the lap with a garden hose. Check the attic for any drips.
Common Pitfalls to Watch For:
- Underlapping: Trying to save money by only overlapping 2 inches. This will leak.
- Ignoring Expansion: If you screw the panels down too tightly without allowing for movement, the holes will spread out over time.
Finishing Touches for Pro Results
Once all your lengthwise overlaps are done and the roof is covered, install your ridge caps at the peak. The ridge cap covers the gap between the two sides of the roof and prevents rain from entering the top. Use closure strips (foam blocks) under the ridge cap to keep out bugs and wind-driven rain.
Finally, clean up the roof. Sweep off any metal shavings immediately. If left overnight, those tiny metal bits will rust and stain your brand-new roof.
Pro Tips for a Leak-Proof Metal Roof Installation
To truly elevate your installation from “good enough” to “professional grade,” you need to consider environmental factors and advanced techniques.
Climate-Specific Advice (Focus: Lahore & High-Rain Areas)
If you are installing this roof in a place like Lahore, where monsoon seasons bring intense, driving rain and high winds, standard specs might not be enough.
- Increase the Overlap: Instead of the standard 6 inches, go for 9 or even 12 inches. The further the water has to travel uphill to leak, the safer you are.
- Double Sealant: Never rely on just one strip of tape in monsoon regions. Use two parallel strips of butyl tape at every lengthwise overlap.
Beware of Thermal Expansion
Metal moves. It’s a fact of physics. In the summer heat, a 20-foot metal panel can expand significantly. If you pin it down too tightly at both ends, it will buckle.
- The Fix: When driving screws, tighten them until the neoprene washer is snug, but do not crush it. You should be able to spin the washer with your fingernail with some effort. This allows the metal to move slightly without tearing the hole.
The Hidden Fastener Look
If you want the cleanest possible look, consider a standing seam system with clip fasteners. These clips attach to the roof deck, and the panels clip to them. This means there are no exposed screws to rust or leak over time. It’s more expensive, but the aesthetic and durability are unmatched.
Case Study: A Lahore Homeowner’s Success
I recently spoke with a homeowner in Lahore who decided to retrofit his roof. By simply increasing his overlap to 10 inches and using high-grade butyl tape, he reported that his home remained completely dry during the record-breaking rains of the previous summer—saving him an estimated 20% on potential water damage repairs compared to his neighbors who used standard, minimum overlaps.
Cost Breakdown and Maintenance for Long-Term Savings
Let’s talk about the bottom line. Is doing this correctly worth the extra cost of materials? Absolutely.
Average Costs (2026 Estimates)
In the current market (based on 2026 Pakistan pricing), installing a quality metal roof typically costs between $8 and $14 per square foot. This price includes the panels, screws, sealant, and extra material for those generous overlaps.
- While this is higher than asphalt shingles, metal roofs last 2-3 times longer.
Maintenance Schedule
A metal roof is low-maintenance, not no-maintenance.
- Annual Inspection: Walk the roof (carefully!) once a year. Check for loose screws.
- Re-Seal: Every 5 to 7 years, check the exposed sealants at the penetrations (vents, chimneys). The butyl tape inside the overlap should last decades, but exposed caulk may need a touch-up.
ROI: The Long Game
You will likely recoup your investment within 7 to 10 years through energy savings (lower AC bills due to heat reflection) and the elimination of roof repairs.
Cost vs. Asphalt Shingles Comparison
Feature Asphalt Shingles Metal Roofing
Initial Cost Low Moderate to High
Lifespan 15-20 Years 50+ Years
Maintenance High (missing shingles) Low (annual check)
Energy Efficiency Low (absorbs heat) High (reflects heat)
Leak Risk Moderate Low (if overlapped correctly)
FAQ: Common Questions on Metal Roofing Overlaps
You may have a few specific questions. Let’s address the most common ones I hear.
Q: How much overlap do I need for a low-slope roof? A: If your roof is nearly flat (low slope), you need more protection. Aim for at least 12 inches of lengthwise overlap. You should also be using continuous sealant strips on both sides of the screw line.
Q: Can I DIY lengthwise overlaps alone? A: It is possible, but difficult. Metal panels are long, floppy, and sharp. Having a helper to hold the panel while you align the overlap and drive the screws makes the job 100% safer and ensures the alignment is straight.
Q: What is the best sealant for “how to overlap home metal roofing lengthwise”?A: Butyl tape is the gold standard. Do not use standard silicone caulk inside the overlap. Silicone hardens and can crack when the metal expands and contracts. Butyl stays flexible and sticky forever.
Q: My screws are stripping out. What do I do? A: If a screw hole strips (doesn’t tighten), remove the screw and replace it with a slightly larger-diameter screw (often called a “goof screw” or oversized fastener). Do not just leave a loose screw; it will leak.
Q: Do I need to remove the old roof first?A: Not always. One of the benefits of metal roofing is that it can often be installed directly over old asphalt shingles using wooden strapping (purlins). This creates a vented air space and saves you the mess of a tear-off.
